Engineered for Strength, Built to Last
SBP Enterprises manufactures high-performance Corrugated Steel Cable Drums products that meet the most demanding operational challenges. High Voltage disconnector spare and equipments, Our solutions combine robust materials, exacting standards, and smart design to deliver unmatched reliability.

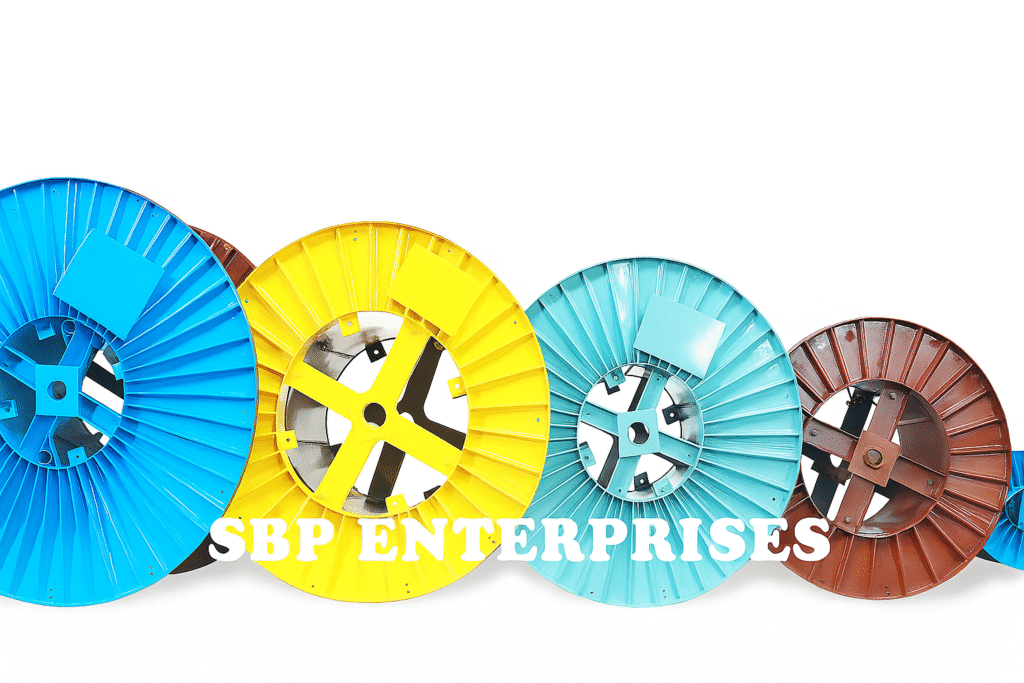

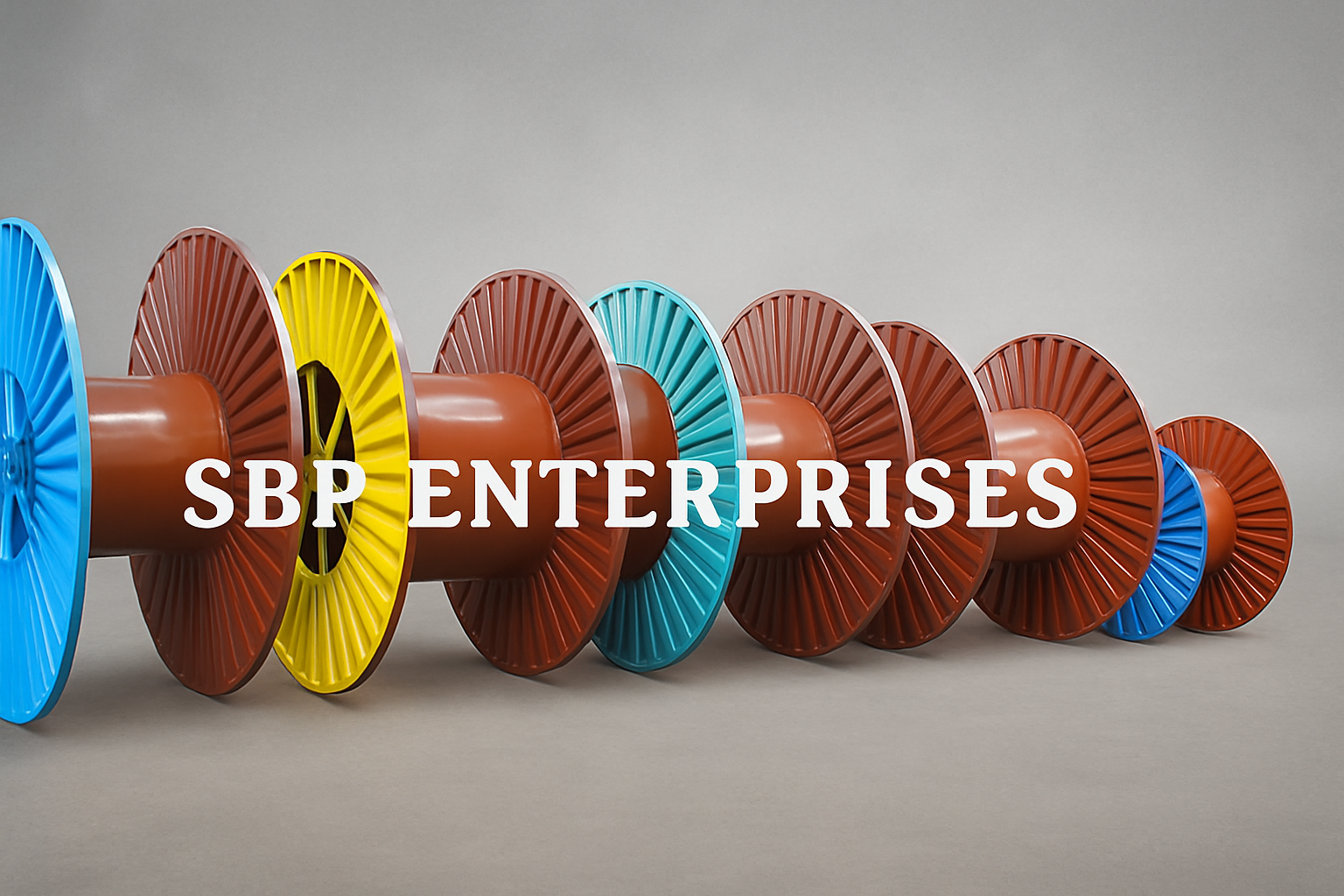

Corrugated Steel Cable Drums
| Parameter | Specifications |
|---|---|
| Size Range | 900mm – 3000mm (28″ – 120″) |
| Weight Capacity | 500kg – 10,000kg |
| Material | IS 2062 Grade Steel |
| Standards | DIN 46321, ISO 9001 |
| Custom Options | – Reinforced ribs – Powder coating (200+ RAL colors) – Quick-disassembly mechanism – Coastal-grade anti-corrosion |
| Lead Time | Standard: 1-2 weeks Custom: 2-3 weeks |
Flange Liners (H-Flute Guard)
| Parameter | F-Flute Guard | S-Flute Guard |
|---|---|---|
| Rib Structure | Vertical ribs | Wavy ribs |
| Material | Polypropylene (350 GSM) | Polypropylene (350 GSM) |
| Thickness | 2mm – 3mm (5mm HD available) | 3mm (5mm HD available) |
| Colors | Black/Blue (Custom colors available) | |
| Temp Range | -20°C to 80°C | |
| Special Features | Anti-static option UV-resistant 100% recyclable | |
| Applications | HV cable protection Steel coil separation Export packaging |
DIMENSIONS OF FLANGE LINERS
| Sl No | DRUM SIZE | FLANGE (OD) | FLANGE (ID) | THICK | GSM | COLOR |
|---|---|---|---|---|---|---|
| 1 | DRM – 28″ | 700 MM | 360 MM | 3 MM | 350 | BLACK/BLUE |
| 2 | DRM – 32″ | 800 MM | 360 MM | 3 MM | 350 | BLACK/BLUE |
| 3 | DRM – 36″ | 905 MM | 360 MM | 3 MM | 350 | BLACK/BLUE |
| 4 | DRM – 42″ | 1055 MM | 410 MM | 3 MM | 350 | BLACK/BLUE |
| 5 | DRM – 48″ | 1210 MM | 410 MM | 3 MM | 350 | BLACK/BLUE |
| 6 | DRM – 52″ | 1310 MM | 410 MM | 3 MM | 350 | BLACK/BLUE |
| 7 | DRM – 60″ | 1515 MM | 510 MM | 3 MM | 350 | BLACK/BLUE |
| 8 | DRM – 65″ | 1640 MM | 510 MM | 3 MM | 350 | BLACK/BLUE |
| 9 | DRM – 68″ | 1720 MM | 770 MM | 3 MM | 350 | BLACK/BLUE |
| 10 | DRM – 72″ | 1820 MM | 770 MM | 3 MM | 350 | BLACK/BLUE |
| 11 | DRM – 84″ | 2125 MM | 980 MM | 3 MM | 350 | BLACK/BLUE |

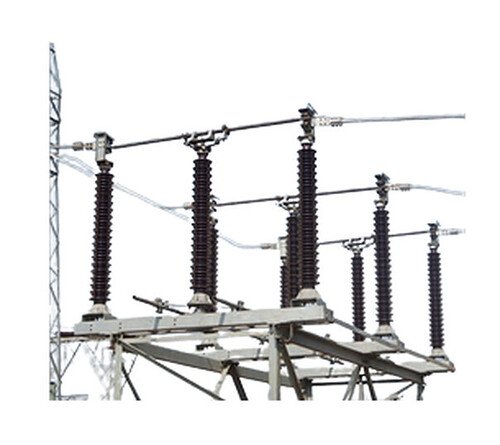

High Voltage Disconnector Spares
| Component Type | Technical Specifications |
|---|---|
| Blade Assemblies | – Contact material: Copper alloy – Surface: Silver-plated – Operational cycles: 10,000+ |
| Operating Rods | – Material: Stainless steel 304 – Length customization: 500mm-2000mm |
| Testing Standards | IEC 62271-1, IS 9920 |
| Customization | OEM drawings accepted Prototype development in 2 weeks |
